Savo cooker hood LED-lamp 3,1W 3000K 140186631010

Cooker hood / Extractor Led-light with stainless steel rim. Attachment hole diemater 56 mm, rim diameter 67 mm, depth 20 mm. ANC A18663101 700mA, 3,1W 3V 3000K 200lm 6LED beam angle 110°. Fits for many Savo models, f.ex. CH-52/D (90311), C-52/A (90306), C-52/A (92305), C-52/A (92306), C-55/A (92432), C-61/A (90469), C-61/A (92464), CH-61/D (90463), G-56/B (90636), IH-55/D (90583, 92583), G-6206-S2 (90641).

Replaces older 2,1W ja 2.5W lamps:

• Forma E Funzione, ZIK7-Z 700mA, 2,1W 3V 3000K,
• 02320387 HCL-061AN-WW
• A18663101 YYJ1-30K 700mA 2.1W 3V 3000K 210lm
• Z02300452
• 02300452
• 23203870
• 75900000000316
• 23003874
• Can be installed to device with MAX 2x2,5W marking

Note! The breaking of the lamps may be caused by a faulty central unit / light transformer of the cooker hood, which supplies the wrong voltage to the lamps. Therefore, do not install new lights before you have measured the voltage coming to the lamps. The voltage should be around 3-4V DC with the lamps connected.

• Driver for two lamps: Elica 10W 700mA SPP0000096

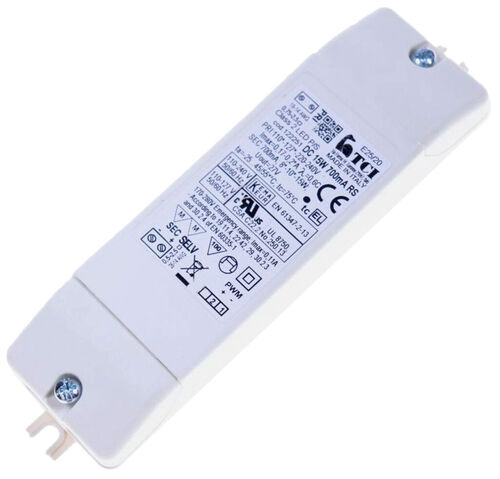

• Driver for four lamps: TCI 15W 700mA 133.0171.826
