Product no.: 1460

Commercial dishwasher circulation pump. Fits for many Fagor models like FI-30, FI-48, FI-72, FI-80, FI-100 & few Comenda models. 590W, 3A, 2750rpm, 230V, 10uf. hose attachments with 38mm outer diameter.

Product no.: 1036

Drain pump Hanning EW. Fits Meiko ES530F -model. In / Out 24 mm. 70W 230V.

MM150,MM100 (N-141003)

W5-31602

Product no.: W194

Metos WD6 commercial dishwasher washing motor impeller. Diameter 105mm, thread M8R. fits to pump no. W192 (400V 1,1hp).

Product no.: 1331

Commercial dishwasher washing motor impeller. Diameter 110 mm. Height 33 mm. Thread M8. Axle bore inner diameter 12,3 mm. Fits to Metos WD6, Comenda C-95, Electrolux D48, Dihr 87, 92 models with washing pump no. FIR2241 (FIR 2241DX).

Product no.: 1094B

Commercial dishwasher detergent / rinse aid dispenser / doser N6, Z651123. Replaces part Z211109.

Fits Fagor FI-30, FI-48, FI-48/B, FI-64/B, FI-50, FI-72, FI-80, FI-80/W, FI-100, FI-120, FI-120/W, ECO-120, MF-120, LVR-10, LVC-21/D/B, LVC-12, LVC-15/D, WMF-21.

Product no.: 1234B

Commercial dishwasher hydraulic rinse aid doser. Fits for newer Fagor -models & Adler, Comenda. 20199, 40145.

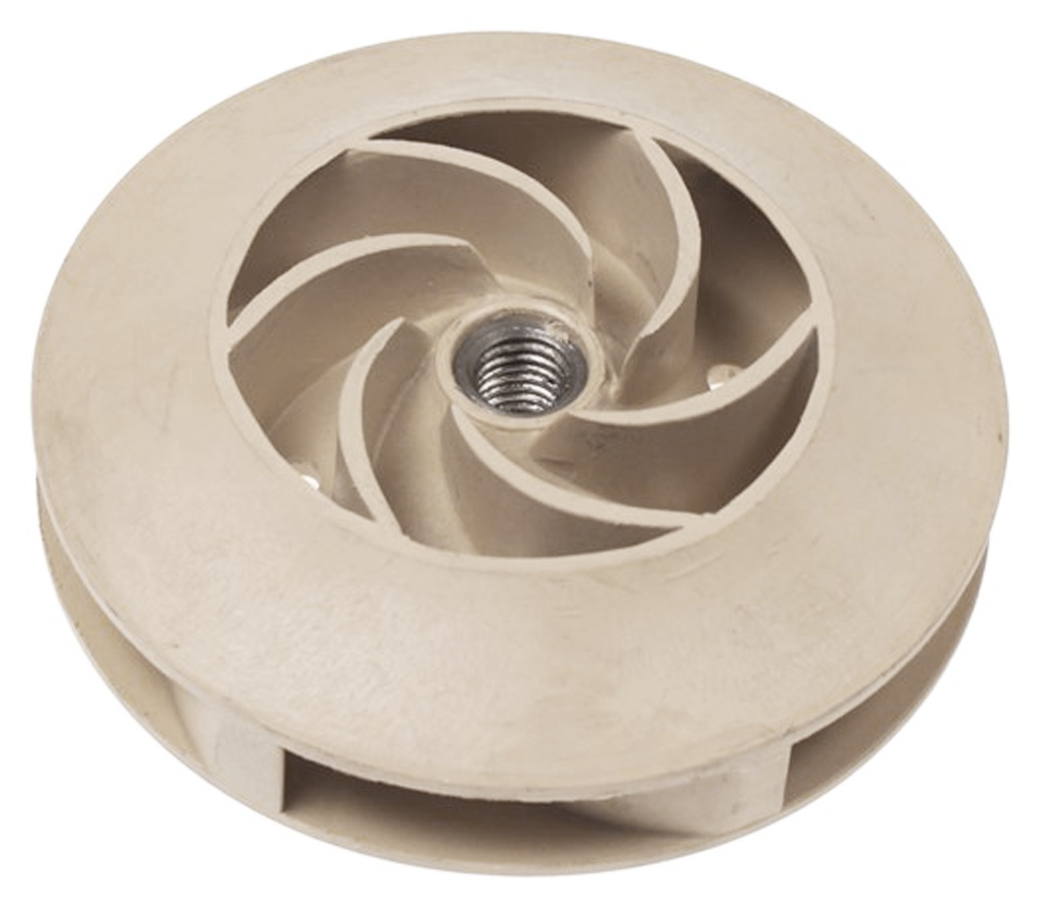

Product no.: 1537

Commercial dishwasher pump impeller 15912. 95mm. Fits for pump Metos Master 2 / Dihr 15908/D.

Product no.: 1525

Washing machine washing pump impeller 88 mm, 50Hz. Replace parts Z201082, Z201082000. Suitable for pump type 2/123 / Fa30. Suitable for e.g. for many Fagor FI series models. Check the fit of your model from the fit table and wing dimensions.

  • Diameter 88 mm
  • Height 33 mm
  • M8 thread for shaft
  • For 12mm shaft seal (sold separately)
Product no.: 1049

Commercial dishwasher shaft seal for pump impeller. Fits a impeller with a 12mm shaft. Includes sealing ring and slip ring. Replaces parts Z201081, Z201081000. Suitable for pump types 2/102/FA15,  2/123/FA30, 2/123/FA21, FIR1226, FIR1241, FIR2241, FIR1225, 0K7245, ZF522VSX, 1001SX0, LGBT170, FIR4223, FIR1295, FIR1204DX, FIR3911.1507, FIR1295SX, FIR1227, FIR1243, FIR1293, FIR1205D, MCE80.T200SX, LGBZF270VDX. Suitable for e.g. for many Fagor FI series models and Dihr/Metos professional dishwasher pumps. Check the fit table for your model.

  • Outer diameter of sealing ring 24 mm
  • Inner diameter of sealing ring 12 mm
  • The larger inner diameter of the sealing ring is 14.5 mm
  • Sealing ring thickness free 15.5 mm
  • Inner diameter of sliding ring 13.7 mm
  • The outer diameter of the sliding ring is 26 mm
  • Slide ring thickness 8 mm
Product no.: 1299B

Commercial dishwasher detergent pump hose 135 mm. Suitable for e.g. Germac G290, G295, G300, G305, G43, G45, G53, G54, G650, G55.

  • THERMOPLASTIC HOSE ø 6.2x10.2 mm
  • Total length including ends 185 mm
  • Hose section length 115 mm
  • Length from one attachment point to another 135 mm
Product no.: 1292

Commercial dishwasher 50/60 Hz vibrating detergent dispenser GRI 230V. Fits for Metos WD-series professional dishwashers.

Product no.: 1418

Mechanic rinse aid dispenser 020.23 Mod. 2000/VNR/3. Fits Metos Master 2, AQUA 50, AQUA 80, LUX 60-EL.

Product no.: 1234

Professional dishwasher rinse aid pump Mod. CM 620120 IDRAULICO.

Product no.: 1668

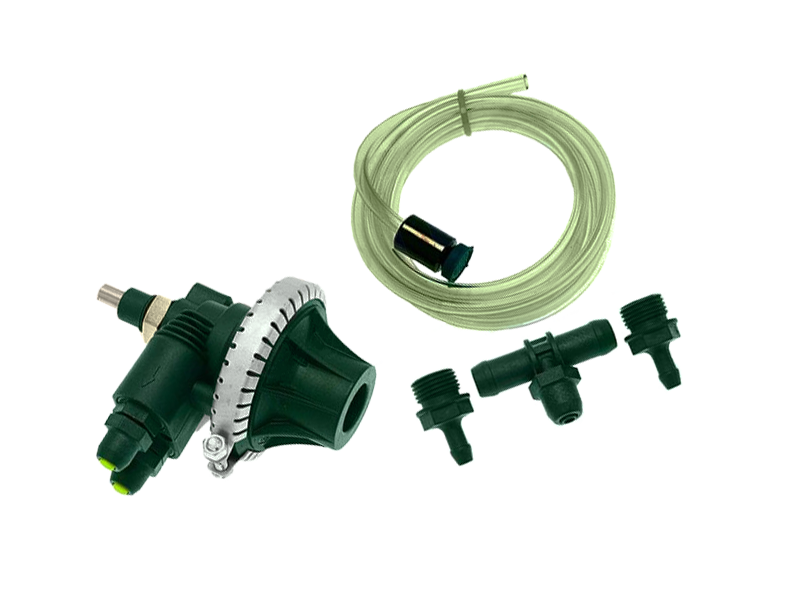

Professional dishwasher rinse aid dispenser 048715. Includes hose and connectors.

Product no.: 1093

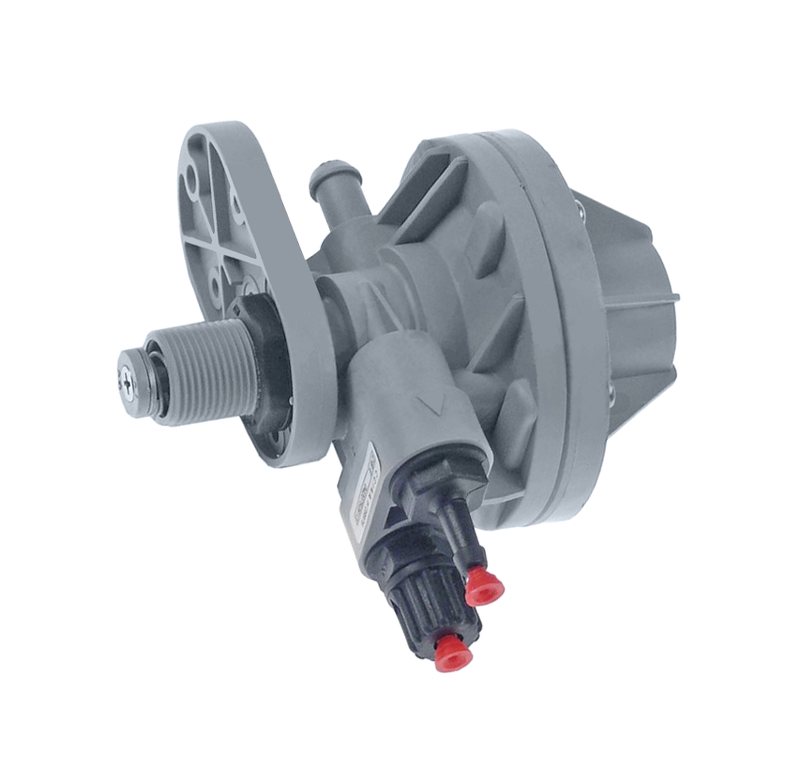

Professional dishwasher rinse aid dispenser DIB0808E4000.

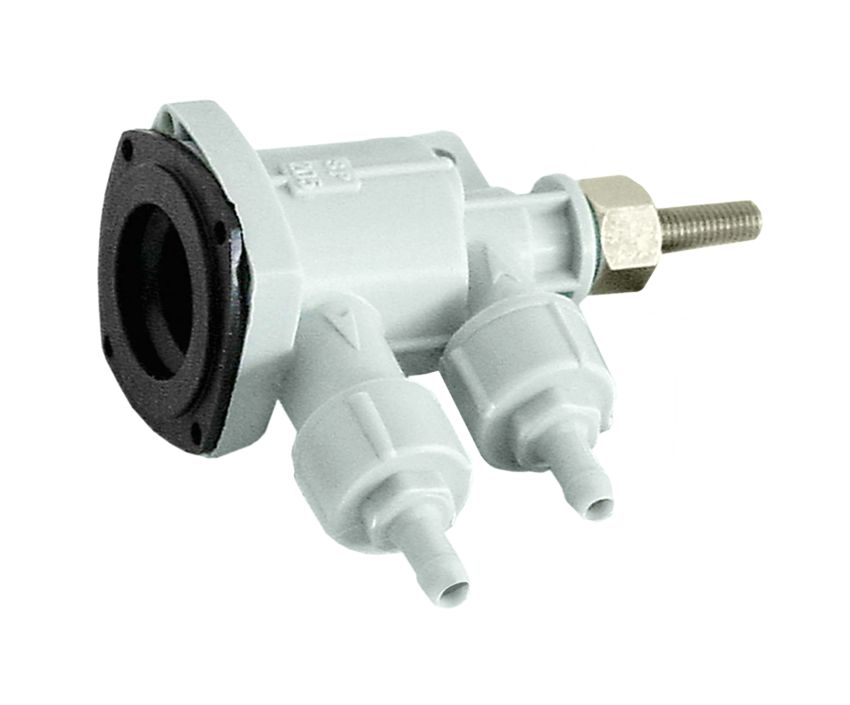

Product no.: 1093B

Professional dishwasher rinse aid dispenser Elettrobar 987023 with 6mm connectors.

Product no.: 1156

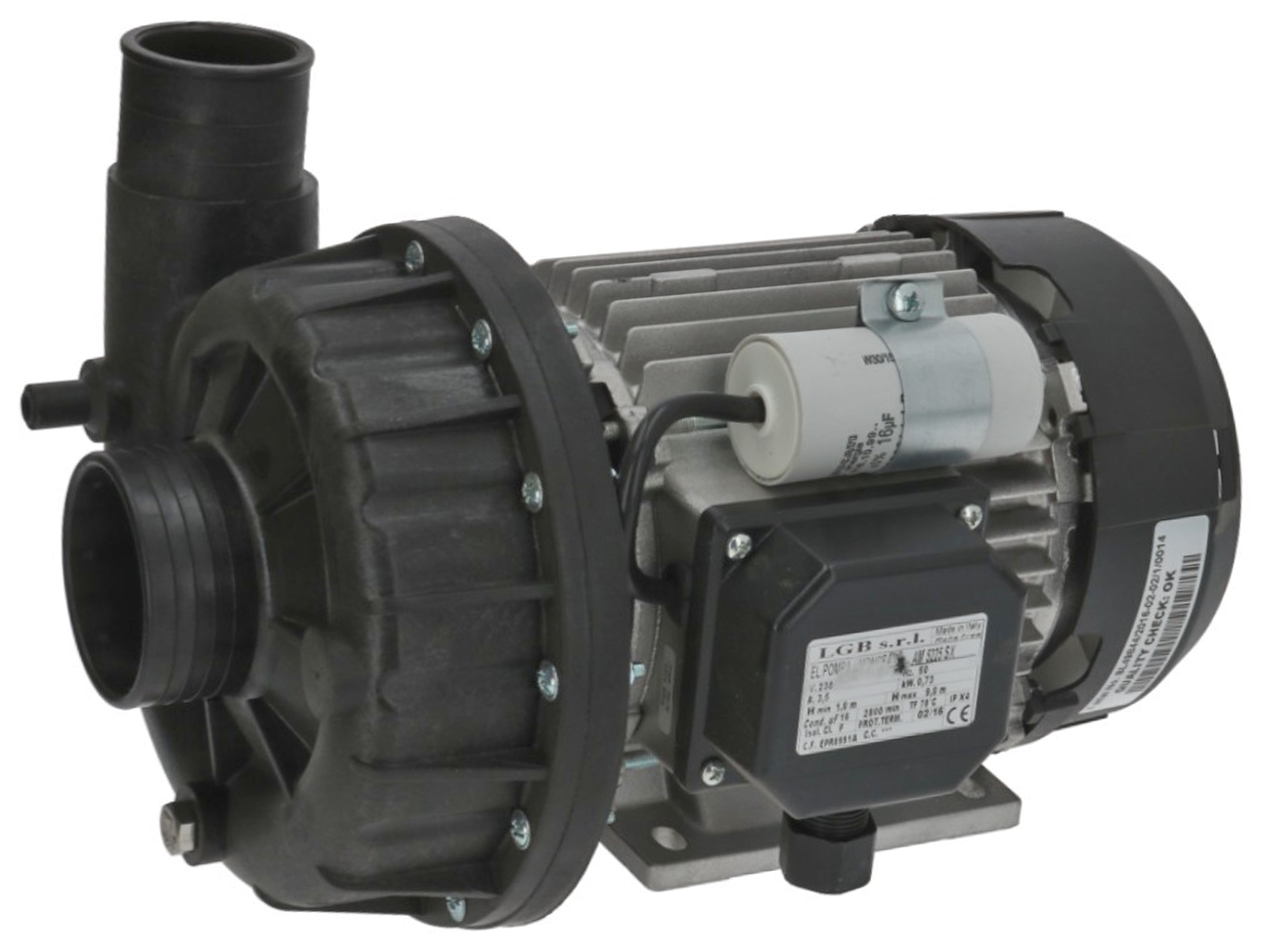

Commercial / profesional dishwasher washing pump AM5226SX, fits Metos Master 10.

  • Power 0,80 Hp, 2800 rpm
  • Voltage 230 V
  • Frequency 50 Hz
  • Connection in 63 mm
  • Connection out 48 mm
  • Condensator 16 μF
Product no.: 1155

Professional dishwasher pump FIR1293, fits Metos Master 20 and 40.

  • Power 0,75 Hp
  • Voltage 230/400V
  • Frequency 50 Hz
  • Connection in 63 mm
  • Connection out 48 mm
Product no.: 1154

Professional dishwasher washing pump FIR1225, fits Metos Master 5 and 60, new Metos WD7 (reversible box), Comenda 100634.

  • Power 1,5 Hp, 2800 rpm
  • Voltage 230/400V
  • Frequency 50 Hz
  • Connection in 63 mm
  • Connection out 48 mm
  • Lenght 335 mm

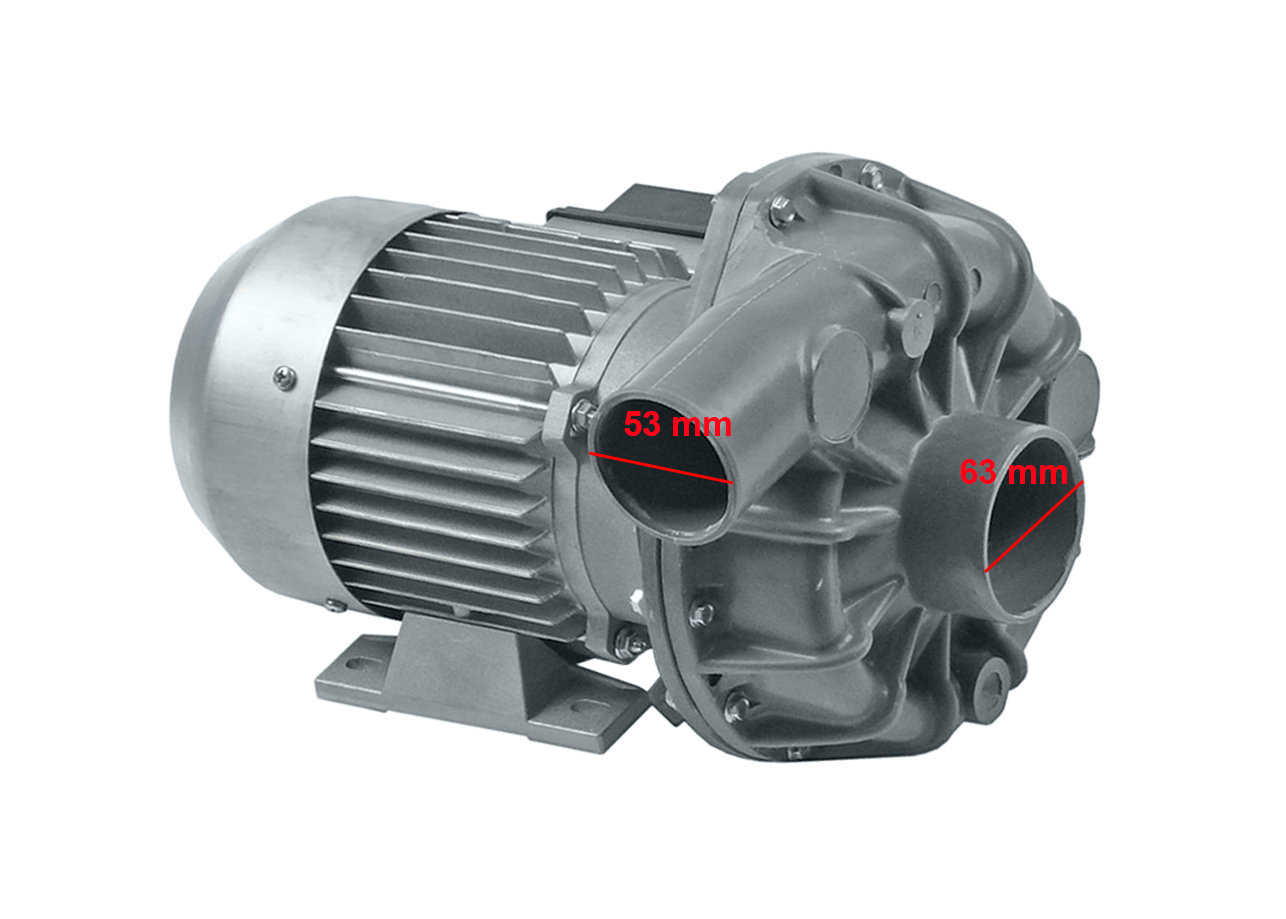

Product no.: 365

Professional dishwasher washing pump FIR2241.2715, original spare part for Metos/Wexiödisk WD6/WD6E.

Replacing pump 192.

  • Power 1,2 Hp, 2800 rpm
  • Voltage 230/400V
  • Frequency 50 Hz
  • Connection in 63 mm
  • Connection out 53 mm
  • Lenght 300 mm

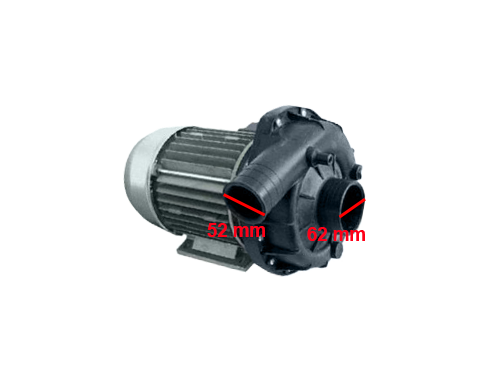

Product no.: 192

Professional dishwasher washing pump, fits Metos/Wexiödisk WD6.

Replaces pump FIR2241.2715.

  • Power 1,1 Hp
  • Voltage 230/400V
  • Connection in 62 mm
  • Connection out 52 mm
Product no.: 191

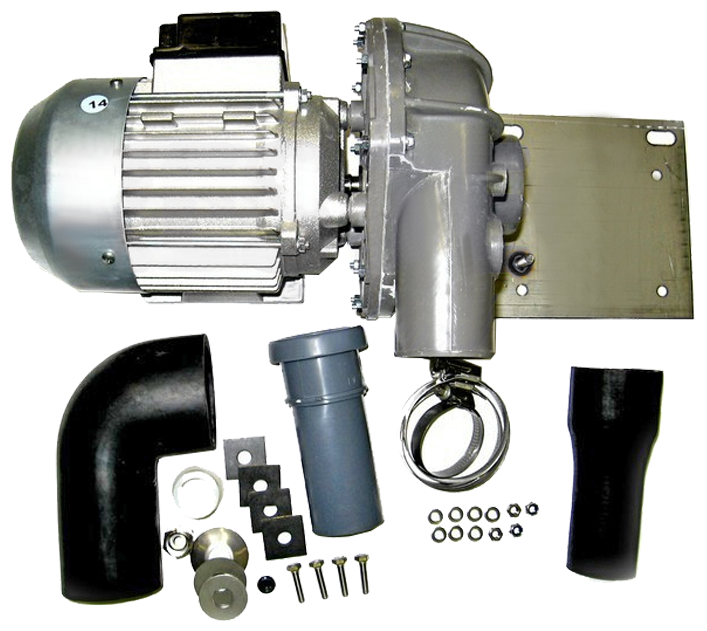

Commercial dishwasher washing motor. Complete replacement kit. Fits Metos Wexiodisk WD6, WD-6 / WD6E, WD-6E -models until year 2006.

  • inlet connection hose 50 / 62 mm
  • Adapter tube 50 / 50 mm
  • Pressure hose 38 / 53 mm

After 2007 manufactured models has pump 267

Product no.: 1837

Professional dishwasher washing pump FIR1241, fits Metos WD7, Comenda 100663, Comenda LC700.

Reversible 45º box when installing to WD machine.

  • Power 1,5 Hp, 2800 rpm
  • Voltage 230/400V
  • Frequency 50 Hz
  • Connection in 63 mm
  • Connection out 54 mm
  • Lenght 330 mm
  • Capacity 625 l/min





Product no.: 1768

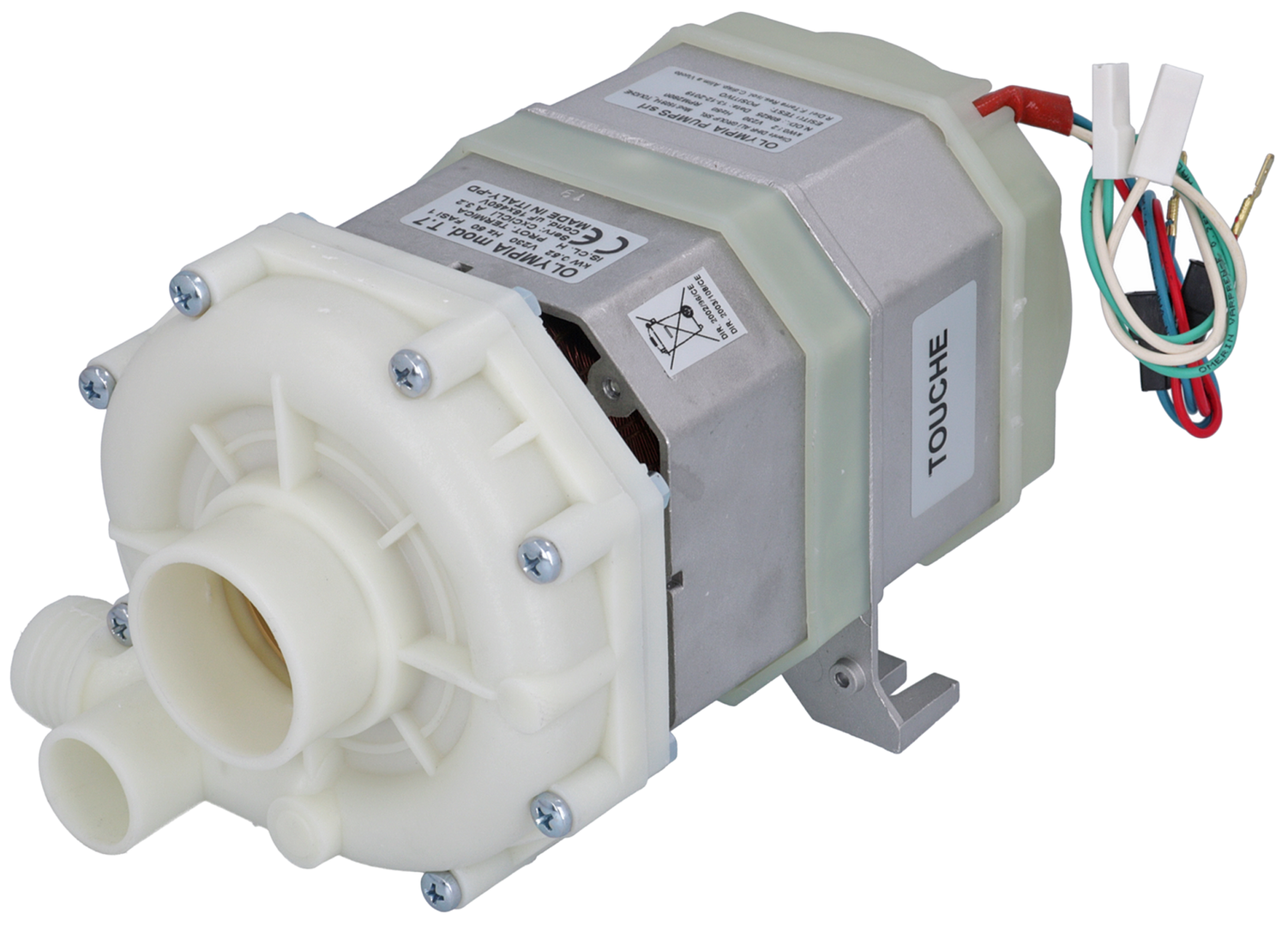

Commercial / Professional dishwasher washing pump 150914. Two outlets. Fits for few Metos Master 2, Metos Master AQUA 50, Dihr Electron, Gastro, DS, GS -series models.



Product no.: 1459B

Professional dishwasher pump with two outlets, fits some versions of Metos Master 2, Dihr Tekno 6.

  • Voltage 230V
  • Inlet 60 mm
  • Outlets 50 mm, 29 mm
Product no.: 1678

Professional dishwasher pump with two outlets, fits some versions of Metos Master 2 and Metos Master AQUA 80.

  • Power 0,75 Hp
  • Voltage 230 V
  • Inlet 60 mm
  • Outlets 50 mm, 31 mm
  • Condensator 12,5 μF

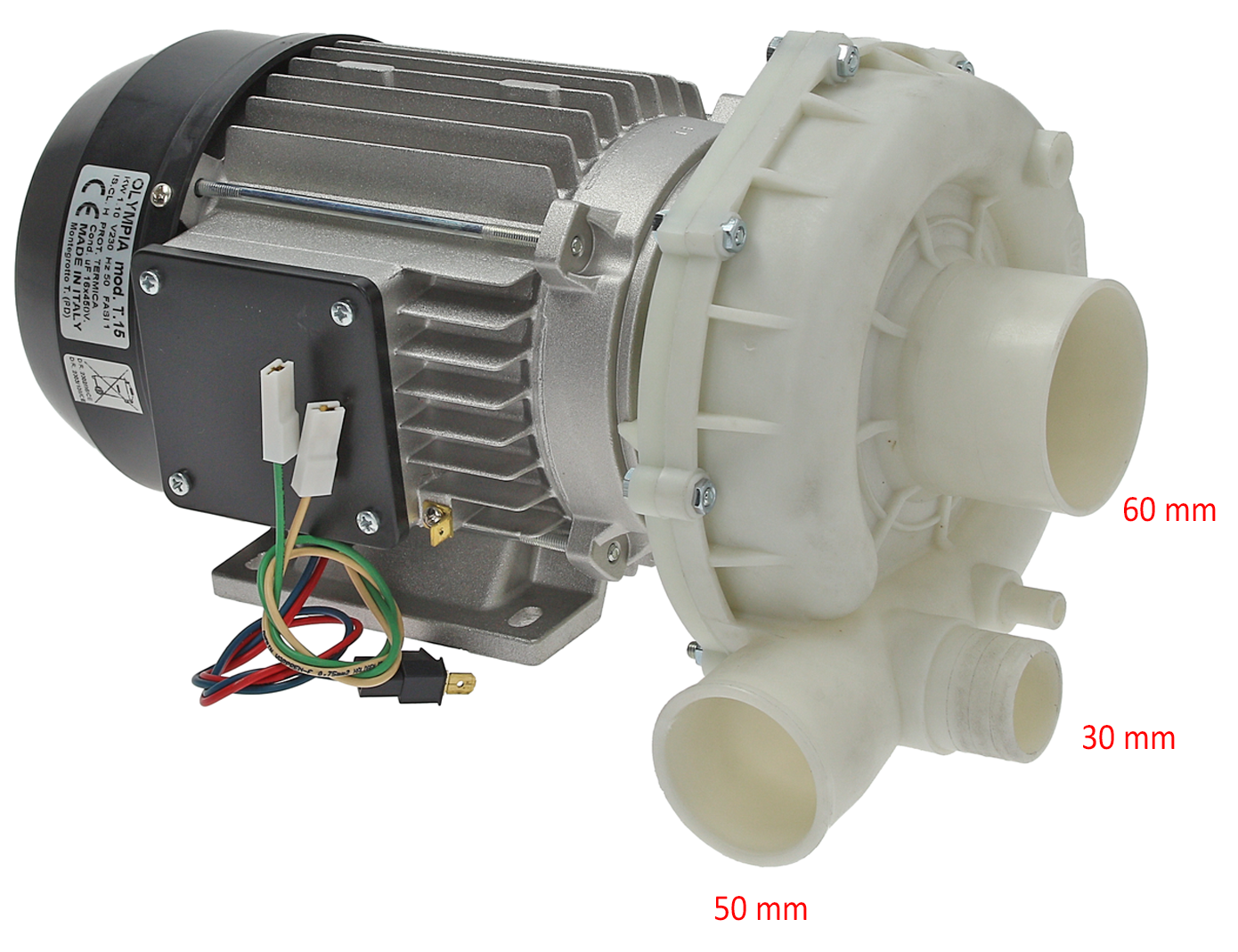

Product no.: 1680

Commercial dishwasher pump 22009 with two outlets. Olympia Mod. T.15. Suitable for e.g. for many Metos HOOD110, DW014, Dihr Gastro11S, Dihr GS100, Kromo K100, Olis OLG11S-OLHT11D models.

  • Power 1.1kW, 1.5 Hp, 2700 rpm
  • Voltage 230 V 50Hz
  • Inlet 60 mm
  • Outlets 50 mm and 31 mm
  • Capacitor 16 μF

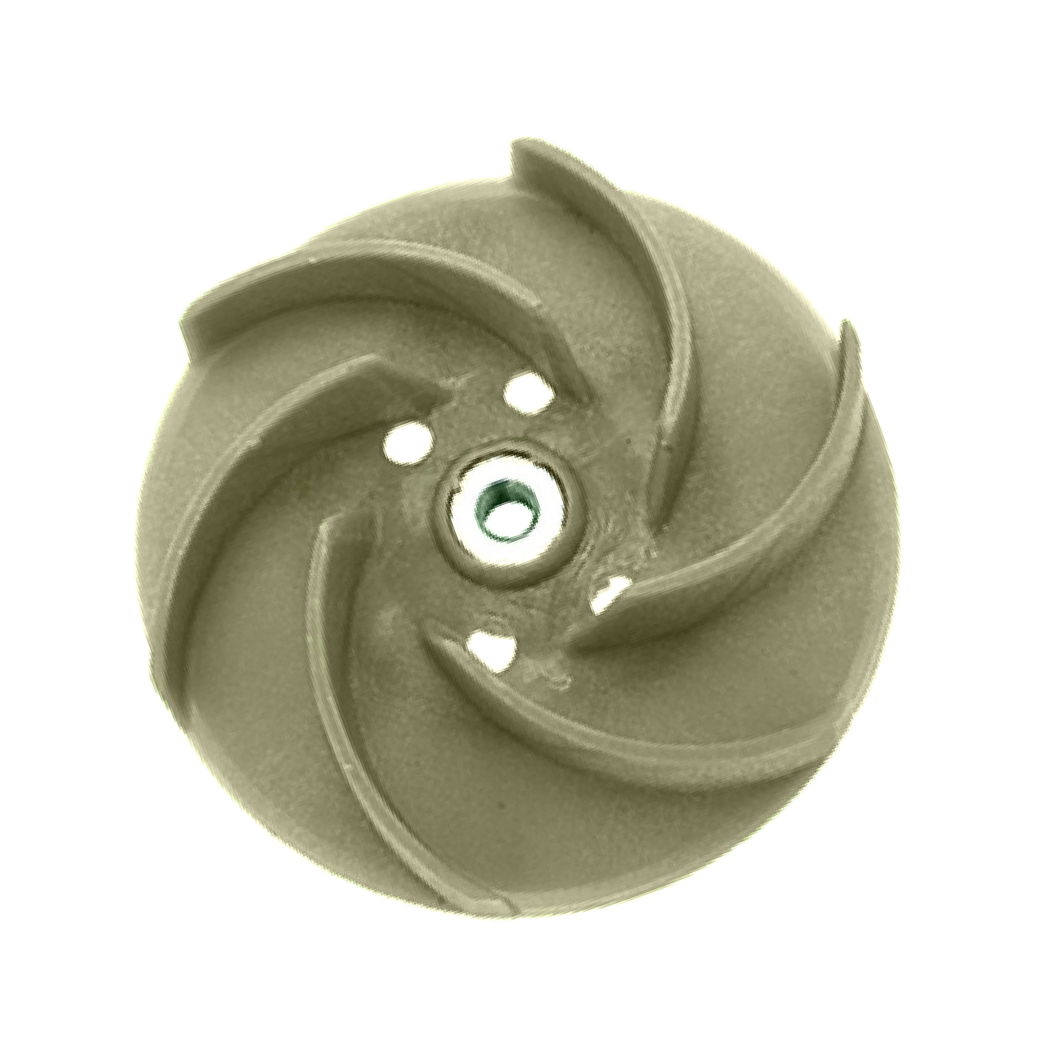

Product no.: 1050

Impeller of the washing pump of a commercial dishwasher. Diameter 111 mm. Direction of rotation clockwise. Suitable for pumps FIR2254S, FIR2254/SSX, FIR1211 FIR1214, FIR1293SX, FIR1225.

Product no.: 1051

Commercial dishwasher pump impeller. Diameter 103 mm. Thread M8L. Suitable for e.g. FIR 1293 for a pump that has been used e.g. Metos Master 10, Metos Master 20, Metos Master 40 models.

Product no.: 0L4295

Pressure-controlled rinse aid pump for a commercial dishwasher. Suction / inlet pipe connection ø 4x6 mm, Outlet pipe connection ø 6 mm. In addition to the pump, a suction pipe, suction nozzle and weight are included. Replace pumps 0L0094, 0L3182. Fits many Electrolux, Zanussi, Alpeninox EGWS, EUC, NUC, ZUC series models. Check the fit table for your model.

Product no.: 0L1163

Commercial dishwasher rinse aid pump suction pipe 4x6. Length 2660 mm. Grey hard tube. Inner diameter 4.3 mm, outer diameter 6 mm. Fits many Electrolux, Zanussi, Alpeninox dishwashers.

Product no.: 1098E

Commercial dishwasher detergent hose. Hard PE-plastic, suitable for dispensers with quick connectors, such as 864218. Fits many commercial kitchen under counter dishwashers and hood type machines.

  • Outer diameter 6 mm
  • Inner diameter 4 mm
  • Length 2 m
Product no.: 11523

Hood type commercial dishwasher water circulation pump LGB ZF522VSX. Replace pumps 0L2831, 499407, S0207799, EPR3244, 7112685. 230V ac 50Hz 0.76 kW. Fits many Electrolux Zanussi AHT8, EHT8, NHT8, ZHT8 series models. Check the fit table for your model.

Product no.: 1996

Professional dishwasher washing pump FIR1243, fits Mach models MLP60, MLP60E, MLP140.

  • Power 3,2 Hp / 400 V
  • Connection in 63 mm
  • Connection out 54 mm
Product no.: B1205

Commercial dishwasher washing pump motor & casing. Replaces pumps 049876, 0L3395, B257.1605, B257.1700, 149876, 771985011942, 3122362. Fits many Electrolux LS, WT series models. Check the fit table for your model.

Product no.: B1381+B1382

Commercial dishwasher rinse pump impeller housing lid 5213303 & seal. Fits for pumps FIR 5213RH / FIR 5213DX / 0L1079 / 0L1640. Inlet outer diameter 30 mm, outlet outer diameter 28 mm.

Product no.: B1375

s

Forssan Huoltopalvelu Ltd does not take any responsibility for accidents occurring in the installation of products or damage caused by incorrectly installed products. The installation of any electronic spare part has to be installed by a professional person with electrical permits required by law professional.  If an electronic component is installed by a person without electrician degree or needed permits the customer is responsible for any possible accidents / damage. Electronic spare parts have no right of return if they have been tested in place on the device.

Product no.: 1307B

Professional dishwasher detergent pump. Hose pump 230 V, adjustable max. 5 l/h. Made in Italy.

Product no.: 9544233

Professional dishwasher drain pump 200/240V, 70W, 50Hz. See list for compatible models.

Product no.: 1090

Commercial dishwasher detergent dispenser, peristaltic pump Seko PR4. Time adjustment, 0.6-4 L / h. Voltage 230V ac. Suitable for e.g. for many Electrolux Professional devices.

Forssan Huoltopalvelu Ltd does not take any responsibility for accidents occurring in the installation of products or damage caused by incorrectly installed products. The installation of any electronic spare part has to be installed by a professional person with electrical permits required by law professional.  If an electronic component is installed by a person without electrician degree or needed permits the customer is responsible for any possible accidents / damage. Electronic spare parts have no right of return if they have been tested in place on the device.

Product no.: 11213

Impeller of the washing pump of a commercial dishwasher. Suitable for Olympia T.15 OP22009, T.5, T.6, T.7 washing pump and many Dihr 144, 14, Gastro11S and Metos HOOD110 models.

Product no.: 00216401

Washing machine or dishwasher drain pump housing. White plastic. A screw-mounted pump part fits into the housing, e.g. Pesukoneen poistopumppu, yleismalli (ruuvikiinnitteinen).

  • Inlet pipe diameter outer diameter 30 mm
  • The outer diameter of the outlet pipe is 22 mm
  • Pipes at an angle of 180 degrees to each other (straight)
Product no.: 864218

Dishwasher detergent pump. In addition to the pump, the installation kit includes 6 mm PE hoses, a weight and a suction head for the detergent container and a 10 mm feed-through for the machine. In the pump, quick connectors for 6 mm PE pipes. Original equipment for Electrolux Professional dishwashers.

  • SEKO NPG3 NPG0003A1048
  • 230V ac 8W 50Hz
  • 2 pcs PE 4 X 6 hoses

Forssan Huoltopalvelu Ltd does not take any responsibility for accidents occurring in the installation of products or damage caused by incorrectly installed products. The installation of any electronic spare part has to be installed by a professional person with electrical permits required by law professional.  If an electronic component is installed by a person without electrician degree or needed permits the customer is responsible for any possible accidents / damage. Electronic spare parts have no right of return if they have been tested in place on the device.

Product no.: 1970

The hose inside the rinse aid pump of a commercial dishwasher. Suitable for Seko pump 1572C (PR1). Replaces parts SEKO 990009098, 9900090098. Fits many Dihr, Electrolux Professional dishwashers.

  • The inner diameter of the hose is 3 mm
  • The outer diameter of the hose is 8 mm
  • Yellow connection nipples with nuts for 3 x 6 mm rinse aid hoses
  • Length 170 mm
Product no.: 00216402

Washing machine or dishwasher drain pump housing. Inlet 24 mm, outlet 22 mm at a 90 degree angle. Fits to screw-mounted drain pumps with a 60-61 mm sealing surface, e.g. Washing machine drain pump, universal model (screw-mounted)

  • Input outer diameter 24 mm
  • Output outer diameter 22 mm
  • Inner diameter for the sealing surface of the pump 60 mm
Product no.: 267

Washing pump / motor FIR1295 for commercial kitchen hooded dishwasher. Fits Metos Wexiodisk WD6, WD6E (newer slanted roof model, manufactured since 2007). Replaces pumps 301494.01, 301494,01, 30149401, WD301494.01, WD30149401, 805.2640, 8052640.

Product no.: 1010G

Commercial dishwasher wash pump Fir B229.1405, see list for compatible models.

  • 230V, 1,6A, 50Hz
  • Connector in 28mm
  • Connector out 28mm
  • Power 0,22kW / 0,3HP
  • 2800rpm
  • Capacitor 5µf (not included)
Product no.: 3122621

Shaft seal of the washing pump / circulating water pump wing of a commercial dishwasher. Suitable for a pump with a 13 mm shaft. Includes sealing ring and sliding ring. Replaces 0141003, L351667, 141003, RAT210, 500593, RX94804366, H33839, 0145R+0142R, 5017792. Suitable for several LGB pump types, like ZF800DX, ZF650DX. Suitable for e.g. for the pumps of many COLGED, Comenda, Elettrobar large household dishwashers. Check the fit for your model in the fit table.
