LG heat pump outdoor unit fan motor

Product no.: 4681A20122A

Estimated delivery time: 2-10 business days.

220.00 €

Incl. VAT 24%

Delivery weight: 2 kg

Available delivery methods: Customer Pickup from Forssa, Finland, Postal package, Finland, SmartPost -package automat, GLS, European Union, GLS, North America, Matkahuolto buss delivery, Home Delivery MH, Posti Pikkupaketti parcel, GLS, Iceland, GLS Norway, GLS Switzerland

Ask question

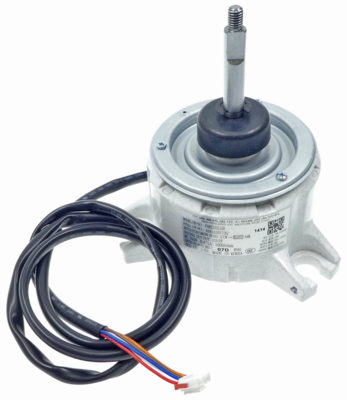

Air source inverter heat pump outdoor unit fan motor 4681A20122A. Replaces motor 4681A20122C. Original spare part for many LG ARTCOOL models. Attachment holes 90x90mm (cross lenght 127mm), Motor diameter 94mm, axle lenght from rubber 63mm, axle diameter 8mm, from cut 7mm, thread 6mm (left-handed thread). Check the compatibility with your model in the compatibility table with the information on the model label of the outdoor unit.

DC 280V
SIC-67FV-D843-1
Nidec Shibaura (Zhejiang)
direction of rotation clockwise (CW)

Forssan Huoltopalvelu Ltd does not take any responsibility for accidents occurring in the installation of products or damage caused by incorrectly installed products. The installation of any electronic spare part has to be installed by a professional with electrical permits required by law. If an electronic component is installed by a person without electrician degree or permits the customer is responsible for any possible accidents / damage.

MODEL	PRODUCT
A09AW1	ASUW096FUG0.ENCBEEU
A09AW1 SF0	AS-W096F1G0.ENCBEEU
A09AWU.UF0	ASUW096FUG0.ENCBEEU
A09AWU.UF1	ASUW096FUG1.ENCBEEU
A09AWU.UF2	ASUW096FUG2.ENCBEEU
A09AWU.UF2	ASUW096FUG2.ENCBEEU
A12AW1	AS-W126F1G0.ANCBEEU
A12AW1	AS-W126F1G2.ENCBEEU
A12AW1.SF0	AS-W126F1G0.ENCBEEU
A12AW1.SF2	AS-W126F1G2.ENCBEEU
A12AWD.UP0	ASUW126PDG0.AWDBEE
A12AWE.SF0	AS-W126FEG0.ENCBEEU
A12AWM.SP0	AS-W126PMG0.AMTBEEU
A12AWM.UP0	ASUW126PMG0.AMTBEEU
A12AWU.UF0	ASUW126FUG0.ENCBEEU
A12AWU.UF2	ASUW126FUG2.ENCBEEU
A12AWU.UF2	ASUW126FUG2.ENCBEEU
ARC-12065 AA 12.000 BTU/H OUTD	8965631100
ARC-12065 Y 12.000 BTU/H DN	8977161100
ARC-90065 AA 9.000 BTU/H OUTDO	8965611100
ARC-90065 Y 9.000 BTU/H DNI	8977141100
ARNU07GTJC2	ARNU07GTJC2.ENWALEU
ARNU07GTUC2	ARNU07GTUC2.ENWALEU
ARNU07GTUC2.ENWALEU	ARNU07GTUC2.ENWALEU
ARNU09GCEU1	ARNU09GCEU1.ENWALEU
ARNU09GTJC2	ARNU09GTJC2.ENWALEU
ARNU09GTUC2	ARNU09GTUC2.ENWALEU
ARNU09GTUC2.ENWALEU	ARNU09GTUC2.ENWALEU
ARNU09GVEA2.ENWALEU	ARNU09GVEA2.ENWALEU
ARNU12GCEU1	ARNU12GCEU1.ENWALEU
ARNU12GTJC2	ARNU12GTJC2.ENWALEU
ARNU12GTUC2	ARNU12GTUC2.ENWALEU
ARNU12GTUC2.ENWALEU	ARNU12GTUC2.ENWALEU
ARNU12GVEA2.ENWALEU	ARNU12GVEA2.ENWALEU
ARNU18GCFU1	ARNU18GCFU1.ENWALEU
ARNU18GSCL2.EMBALEU	ARNU18GSCL2.EMBALEU
ARNU18GTLC2	ARNU18GTLC2.ENWABTK
ARNU18GTLC2	ARNU18GTLC2.ENWALEU
ARNU18GTLC2	ARNU18GTLC2.ENWALTK
ARNU18GTLC2.ENWALEU	ARNU18GTLC2.ENWALEU
ARNU18GTTC2	ARNU18GTTC2.ENWALEU
ARNU18GTTC2.ENWALEU	ARNU18GTTC2.ENWALEU
ARNU24GCFU1	ARNU24GCFU1.ENWALEU
ARNU24GSCL2	ARNU24GSCL2.EMBALEU
ARNU24GSCL2.EMBALEU	ARNU24GSCL2.EMBALEU
ARNU24GTLC2	ARNU24GTLC2.ENWABTK
ARNU24GTLC2	ARNU24GTLC2.ENWALEU
ARNU24GTLC2	ARNU24GTLC2.ENWALTK
ARNU24GTLC2.ENWALEU	ARNU24GTLC2.ENWALEU
ARNU24GTTC2	ARNU24GTTC2.ENWALEU
ARNU24GTTC2.ENWALEU	ARNU24GTTC2.ENWALEU
ASUW126RLQ0.*	ASUW126RLQ0.AMBBLSW
ASUW126UCH0.ACHBLSW	ASUW126UCH0.ACHBLSW
ASUW126UDH0.AWDBLSW	ASUW126UDH0.AWDBLSW
ASUW126UMH1.EMTBLSW	ASUW126UMH1.EMTBLSW
ASUW126URH0.AMRBLSW	ASUW126URH0.AMRBLSW
AS-W096ERH0	AS-W096ERH0.ENCBEEU
AS-W126RLQ0	AS-W126RLQ0.AMBBLSW
AS-W126UCH0.*	AS-W126UCH0.ACHBLSW
AS-W126UDH0.*	AS-W126UDH0.AWDBLSW
AS-W126UMH1
AS-W126URH0.*	AS-W126URH0.AMRBLSW
C09AWB.UU1	ASUW096UBH1.ABLBEEU
C09AWR.SE0	AS-W096ERH0.ENCBEEU
C09AWR.UU1	ASUW096URH1.AMRBEEU
C09AWU.UE0	ASUW096EUH0.ENCBEEU
C09AWU.UE2	ASUW096EUH2.ENCBEEU
C09AWU.UE2	ASUW096EUH2.ENCBEEU
C12AWB SU0	AS-W126UBH0.ABLBEEU
C12AWB.SE0	AS-W126EBH0.ENCBEEU
C12AWM UU0.AMTBEEU	ASUW126UMH0.AMTBEEU
C12AWR	AS-W126URH1.AMRBEEU
C12AWR.SE0	AS-W126ERH0.ENCBEEU
C12AWR.SU0	AS-W126URH0.AMRBEEU
C12AWR.UU0	ASUW126URH0.AMRBEEU
C12AWR.UU1	ASUW126URH1.AMRBEEU
C12AWU UE0	ASUW126EUH0.ENCBEEU
C12AWU.UE2	ASUW126EUH2.ENCBEEU
C12AWU.UE2	ASUW126EUH2.ENCBEEU
C12AWW SU0	AS-W126UWH0.AWHBEEU
CC09AWU.UE3	ASUW096EUU3.ENCBEEU
CC09AWU.UE3	ASUW096EUU3.ENCBEEU
CC12AWU	ASUW126EUU3.ENCBEEU
CC12AWU.UE3	ASUW126EUU3.ENCBEEU
CC12AWU.UE3	ASUW126EUU3.ENCBEEU
CV09.NE2	AVNH09GELA2.ENWAEEU
CV09.NE2	AVNH09GELA2.ENWAEEU
CV09.NE2R0	AVNH09GELA2.ENWAERU
CV12.NE2	AVNH12GELA2.ENWAEEU
CV12.NE2	AVNH12GELA2.ENWAEEU
CV12.NE2R0	AVNH12GELA2.ENWAERU
HM103M.U31	CHBW108A1.EWGBEEU
HM123M.U31	CHBW128A1.EWGBEEU
HM143M.U31	CHBW148A1.EWGBEEU
J09AW.UE1	ASUW096E1G1.EMBBLSW
J12AW.UE1	ASUW126E1G1.EMBBLSW
J12AW.UE1	ASUW126E1G1.EMBBLSW
MS18AQ.NC0	AMNW18GRCL0.EMBAEEU
MS18AQ.NC0	AMNW18GRCL0.EMBAEEU
MS18AWR.NC0	AMNW18GDCR0.EMBAEEU
MS18AWR.NC0	AMNW18GDCR0.EMBAEEU
MS18AWV.NC0	AMNW18GDCV0.EMBAEEU
MS18AWV.NC0	AMNW18GDCV0.EMBAEEU
MS18SQ.NC0	AMNW18GECA0.EMBAEEU
MS18SQ.NC0	AMNW18GECA0.EMBAEEU
MS24AWR.NC0	AMNW24GDCR0.EMBAEEU
MS24AWR.NC0	AMNW24GDCR0.EMBAEEU
MS24AWV.NC0	AMNW24GDCV0.EMBAEEU
MS24AWV.NC0	AMNW24GDCV0.EMBAEEU
MS24SQ.NC0	AMNW24GECA0.EMBAEEU
MS24SQ.NC0	AMNW24GECA0.EMBAEEU
MT09AH.NC1	AMNH09GTCC0.ENWAEEU
MT09AH.NU1	AMNH09GTUC0.ENWAEEU
MT09AH.NU1	AMNH09GTUC0.ENWAEEU
MT09AH.NU1R0	AMNH09GTUC0.ENWAERU
MT11AH NC1	AMNH12GTCC0.ENWAEEU
MT11AH.NC1	AMNH12GTCC0.ENWAEEU
MT11AH.NC1R0	AMNH12GTCC0.ENWAERU
MT11AH.NU1	AMNH12GTUC0.ENWAEEU
MT11AH.NU1	AMNH12GTUC0.ENWAEEU
MT11AH.NU1R0	AMNH12GTUC0.ENWAERU
N09AWB.*	AS-W096EBH1.ENCBLSW
N09AWR.*	AS-W096ERH1.ENCBLSW
N09AWU.UE1	ASUW096EUH1.ENCBLSW
N09AWU.UE1	ASUW096EUH1.ENCBLSW
N09AWV.*	AS-W096EVH1.ENCBLSW
N12AWB.*	AS-W126EBH1.ENCBLSW
N12AWR.*	AS-W126ERH1.ENCBLSW
N12AWU.UE1	ASUW126EUH1.ENCBLSW
N12AWU.UE1	ASUW126EUH1.ENCBLSW
N12AWV.*	AS-W126EVH1.ENCBLSW
Q09AWR N70	ASNW0967RH0.AMRBEEU
Q09AWR U70	ASUW0967RH0.AMRBEEU
S09AA.UA0	ASUW096ADR0.EMBBEEU
S09AA.UA0	ASUW096ADR0.EMBBEEU
S09AT.UE2S	ESUW096E0G2.EMBBEEU
S09AW.UE0	ASUW096E1G0.EMBBEEU
S12AA.UA0	ASUW126ADR0.EMBBEEU
S12AA.UA0	ASUW126ADR0.EMBBEEU
S12AW	ASNW126E1G0.EMBBEEU
S12AW.N40	ASNW1264DH0.EMBBEEU
S12AW.S40	AS-W1264DH0.EMBBEEU
S12AW.SE0	AS-W126E1G0.EMBBEEU
S12AW.SR0	AS-W126RPH0.AMBBEEU
S12AW.U40	ASUW1264DH0.EMBBEEU
S12AW.UE0	ASUW126E1G0.EMBBEEU
S12AW.UE0	ASUW126E1G0.EMBBEEU
S12AW.UR0	ASUW126RPH0.AMBBEEU
S36AW.UD0	ASUW366DGM0.EMBBEEU
S36AW.UD0	ASUW366DGM0.EMBBEEU
UU09W.ULD	AUUW096D.EWGBEEU
UU09W.ULD	AUUW096D.EWGBEEU
UU09W.ULDR0	AUUW096D.EWGBERU
UU12W.ULD	AUUW126D.EWGBEEU
UU12W.ULD	AUUW126D.EWGBEEU
UU12W.ULDR0	AUUW126D.EWGBERU
UU36W.UED	AUUW366D.EWGBEEU
UU36W.UED	AUUW366D.EWGBEEU
UV09.NED	AVNH09GELAD.ENWAEEU
UV12.NED	AVNH12GELAD.ENWAEEU
