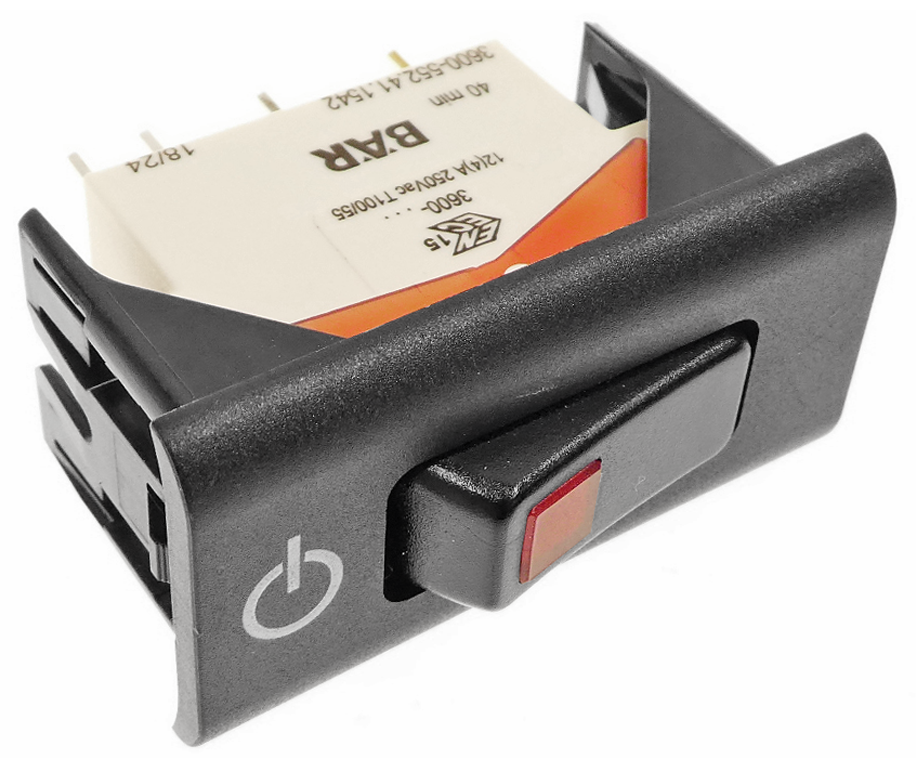

Coffee maker main power switch for Moccamaster AUTO-OFF (AO) models. 40 min auto-off delay, replaces older 120 min auto-off delay switch.
- Assembly to 19x42 mm hole, frame size 24x47 mm
- Four 4.8 mm Abiko flat connectors (your previous switch may have 6.3 mm Abikos, that version is no longer available but you can replace it with this switch by changing the wires to smaller connectors: 4,8mm female)
- In most models, the middle connector accepts two flat connectors with an abiko-splitter (see product images)
- Replaces part 3600-453.40.1542, 3600-551.40.1542, 3600-552.41.1542, 3600-552.17.1552
Not compatible with all of the H and HB series models, this is correct for them: 43140 Moccamaster HB switch AUTO-OFF
Not for retail sale.
Forssan Huoltopalvelu Ltd does not take any responsibility for accidents occurring in the installation of products or damage caused by incorrectly installed products. The installation of any electronic spare part has to be installed by a professional person with electrical permits required by law. If an electronic component is installed by a person without electrician degree or needed permits the customer is responsible for any possible accidents / damage.
If your Moccamaster’s frame warranty is valid and the product has a defect covered by the warranty, please contact our service center or the retailer. The warranty for a device under coverage will be voided if the base plate is opened by anyone other than an authorized Moccamaster service center.
